Executive Summary
This guide explains how to conduct a technical audit of a Picture Book Reading Pen supplier (commonly called a Talking Book Pen, Story Pen, or OID Reading Pen). It is written for B2B buyers evaluating suppliers for commercial orders and private-label programs. The objective: provide a repeatable, technically rigorous audit process that covers labs, certifications, component sourcing, manufacturing controls, firmware/software integrity, sample validation, and reference-order checks. It specifies the laboratory tests and standards to request, what to inspect on site, how to interpret test data and certificates, and how to use reference orders to validate a supplier’s real-world performance.
Key takeaways:
– Require third‑party test reports from accredited labs (TÜV/SGS/Intertek/UL) for safety (EN 71 family / ASTM F963), electrical (IEC 62368-1 / EN 62115), batteries (IEC 62133, UN 38.3), EMC/Radio (EN 55032 / EN 301 489 / EN 300 328 / 2014/53/EU — RED), and chemical compliance (RoHS, REACH, heavy metals).
– Verify raw test data and calibration certificates; do not accept summary reports only.
– Audit manufacturing capability across BOM control, SMT/PCB assembly, injection molding, functional test jigs, AOI/X-ray, aging/burn-in, and firmware configuration management.
– Use concrete acceptance criteria: AQLs (ANSI/ASQ Z1.4), target defect rates (PPM), OID recognition >99.5%, audio latency <100 ms, playback sample rate 16-bit/44.1 kHz or better depending on content.
– Validate reference orders: get contactable buyer references, request samples from shipped batches, compare warranty/return rates and delivery metrics.
– Plan for certification costs and lead times: expect lab testing cycles of 4–8 weeks, RED/FCC radio testing 2–6 weeks, battery qualification & shipping compliance 2–4 weeks; testing fees typically $5k–$25k depending on scope.
Use this guide as a checklist and decision framework to reduce technical risk, control compliance liability, and negotiate realistic timelines and costs.
What Is Picture Book Reading Pen and Who Uses It
Definition

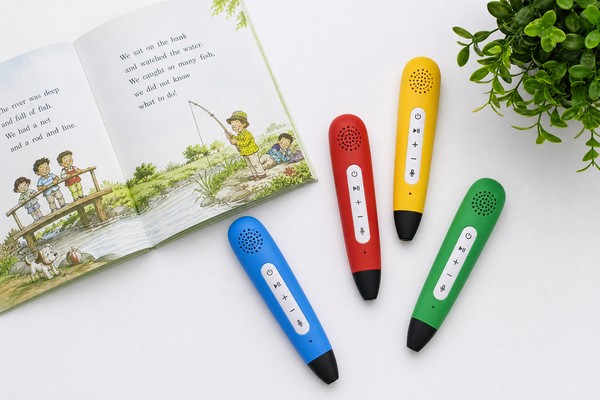

A Picture Book Reading Pen is an embedded-electronics device used by children to tap printed OID (Optical ID) points or areas on specialized picture/storybooks to trigger audio playback of narration, words, songs, or interactive sounds. Typical configurations: embedded MCU with onboard flash storage for audio assets, IR/optical reader or camera sensor to detect printed codes, speaker, microphone (optional for voice capture/TTS), battery power (rechargeable Li-ion or NiMH), Bluetooth/Wi‑Fi for content updates (optional), and a micro-USB or USB-C connector for charging/data transfer.
Primary users and channels
– Educational publishers and content aggregators integrating audio into children’s books.
– Toy and gift brands seeking private-label or licensed-IP talking pens.
– School procurement for interactive learning aids.
– Export-oriented distributors in North America, EU, Japan, and emerging markets.
Common configurations and price tiers
– Basic OID-only pen (no wireless, limited flash 8–32 MB): functionality for fixed audio; FOB unit cost typically $6–$12 at volumes ≥5k.
– Mid-range pen (OID + 32–256 MB flash, rechargeable Li-ion, 2–3W speaker): FOB $12–$20.
– Advanced pen (OID + Wi‑Fi/Bluetooth, microphone, camera sensor for OCR, 512 MB–4 GB flash): FOB $20–$40+ depending on BOM and certifications.
Key performance metrics buyers care about:
– Recognition accuracy for code detection (target >99.5%)
– Audio quality (SNR >65 dB preferred for clear speech; speaker SPL 80–95 dB depending on distance)
– Battery runtime (10–20 hours typical for full-day classroom use; 3–6 hours continuous playback realistic)
– Latency (button/tap to audio start <100 ms for a natural feel)
– Mechanical robustness (drop resistance from 1.2–1.5 m, minimal small-part risk)
Why Demand Is Growing
Market drivers
– Early literacy programs increasingly integrate multimodal learning; audio-augmented books enhance reading comprehension and vocabulary acquisition.
– Cross-border content licensing and digital audio assets enable publishers to expand into value-added physical products without reprinting.
– Parent and school spending on STEM/STEAM and educational toys remains resilient; interactive reading pens fit this category.
– Lower component costs and improved embedded audio SoCs reduce BOM costs, enabling accessible price points.
Regulatory and product trends
– Stricter toy safety standards and greater retailer supplier audits increase demand for compliant suppliers who can demonstrate testing and quality management.
– Content protection and DRM needs are rising for licensed IP; buyers require encrypted storage and secure update channels.
– Bluetooth/Wi‑Fi-enabled pens allow firmware/content updates and analytics, creating ongoing revenue opportunities, but also increase regulatory complexity (radio certification, cybersecurity expectations).
Commercial implications for buyers
– Buyers must balance features versus compliance and cost. Adding Bluetooth or camera sensors multiplies the number of mandatory tests and cost/time to market.
– Suppliers who already own credible third-party test reports and a robust quality system will significantly reduce technical and program risk.
Key Technology Differences
Sensors and detection methods
– OID (optical ID) tags printed on book pages: Uses a dedicated optical sensor (infrared/photodiode or CMOS camera) to read position codes. Advantages: low power, offline operation, simple pairing to audio asset IDs. Risks: print quality sensitivity, ink substrate variations, lamination interference, and lighting conditions.
– Camera-based OCR/Computer Vision: Uses a camera module and vision algorithms to recognize text/graphics. Advantages: flexibility, greater resilience to print variation, and potential for free-form interactions. Risks: higher cost, higher power consumption, need for more advanced firmware and GPU/CPU; may require privacy/security assessment if storing images.
– Capacitive/touch hotspots: Rare in book pens but used in some interactive toys; less common and requires conductive inks/materials.
Audio subsystem
– DAC and audio codec: PCM support 16-bit/44.1 kHz recommended for high-quality narration; lower quality (e.g., 8 kHz telephony) may be acceptable for some low-cost educational titles.
– Amplifier and speaker: Typical speaker sizes 0.5–1.5W for small pens. Look for SNR >60 dB and speaker SPL ~85–95 dB measured at 0.5 m.
– Microphone: Optional for voice interaction or recording; consider noise suppression and gain control calibration.
SoC and memory
– Common SoC families: low-power MCUs (STM32 line), embedded audio SoCs (Dialog, Actions, Allwinner variants), Bluetooth SoCs (Nordic nRF52, QCC series, TI CC26xx). Flash memory ranges from 8 MB (basic) to 4 GB (rich audio + TTS).
– Verify memory provider and part numbers. Counterfeit or second-source memory is a common failure mode.
Power and battery
– Rechargeable Li-ion/polymer cells (common): require IEC 62133 certification and UN38.3 test for transport; expect protection circuit, charge IC, and MOSFETs for safety.
– NiMH cells used less often due to lower energy density.
Wireless connectivity
– Bluetooth Low Energy (BLE) common for content sync and app pairing; Wi‑Fi for content downloads is less common due to power and certification complexity.
– Radio increases compliance scope: RED in EU, FCC Part 15 in US, and various national certifications.
Firmware and content management
– TTS vs recorded audio: TTS reduces memory needs but must be evaluated for language quality; recorded audio requires larger storage and content management.
– OTA updates: require secure bootloaders, signed firmware, and content access controls to prevent unauthorized changes.
Mechanical and materials
– Enclosure materials: ABS/PC blends for impact resistance; consider flame retardancy and compliance with EN 71-2.
– Small parts and battery compartments must meet child-safety requirements (screw-secured or inaccessible battery compartments).
Key Features and Specifications to Evaluate
Hardware specifications
– Recognition accuracy: ask supplier for measured recognition rate across 10,000 random taps under realistic lighting; target >99.5% correct.
– Latency: measure time from tap to audio start; target <100 ms for a responsive feel; acceptable upper bound 200 ms for low-cost products.
– Audio: DAC resolution (16-bit min), sampling rate (44.1 kHz preferred), SNR (≥65 dB desirable), THD (≤1% at rated output).
– Speaker output: SPL 80–95 dB at 0.5 m depending on speaker and amplifier; state power consumption at typical listening levels.
– Battery: capacity (mAh), nominal battery runtime (playback hours at 50% volume), charge time, protection circuit specs, and expected cycle life (≥300 cycles before 80% capacity).
– Physical: drop resistance (test height 1.2–1.5 m), ingress protection if claimed (IP54 minimum for spill resistance).
– Operating temperature and humidity ranges for storage/transport and operation (e.g., -10°C to +50°C operating).
Firmware/software
– Versioning: formal firmware versioning and release notes; bootloader and rollback procedures.
– OTA: secure update protocol, signed binaries, and failure recovery.
– File formats supported: MP3/AAC/WAV with sample rates and bitrates specified.
– Localization support: languages supported and TTS subtleties, if used.
– DRM/Encryption: AES-128/256 for audio assets if required by licensors; key management strategy and revocation.
Compliance and testing
– Safety: EN 71-1/2/3 test reports or ASTM F963 for US market; electrical safety test (IEC 62368-1 or EN 62115 depending on application).
– Battery: IEC 62133 report and UN 38.3 for shipping lithium cells.
– EMC/Radio: EN 55032, EN 55035, EN 301 489, EN 300 328 (2.4 GHz), RED compliance and FCC 15C/15B as needed.
– Chemical: RoHS (2011/65/EU), REACH SVHC screening, phthalates/PVC limits, heavy metals per EN 71-3 or ASTM.
Manufacturing and quality control
– Incoming inspection procedures (IQC) and supplier qualification for critical components (battery, SoC, flash memory).
– SMT line capability: solder paste inspection (SPI), automated optical inspection (AOI), X-ray for BGAs, in-circuit test (ICT) and functional test fixtures.
– Burn-in and aging: recommended minimum 48–72 hours at elevated temperatures for electronic assemblies; suppliers should provide data.
– AQLs and sampling plan; FAI (first article inspection) and pilot-run acceptance tests.
Documentation and traceability
– Bill of Materials (BOM) with manufacturer part numbers and country of origin.
– Component traceability: date codes and lot numbers for batteries and other critical components.
– Technical file for EU Conformity: risk assessment, test reports, user manual, DoC.
– Firmware source control and build logs, ideally fingerprinted into product serial numbers.
Pros and Cons
Pros of buying from a verified, audited supplier
– Lower technical risk: validated test reports and accredited labs reduce the likelihood of noncompliance and recalls.
– Faster time to market: suppliers with existing test evidence and certificate dossiers can shorten release cycles.
– Scale and stability: factories with mature SMT, AOI, and test fixtures produce more consistent yields and lower returns.
Cons and risks to manage
– Cost overhead: adding radio or camera features multiplies compliance requirements and lab fees; expect certification costs and BOM complexity to rise sharply.
– Hidden component risks: counterfeit memory, unlabeled batteries, and third-party SoCs without supply continuity can cause field failures or repeat testing.
– Dependency on supplier QA culture: documents can be forged or outdated. Always request raw test data, calibration certificates, and onsite verification.
Trade-offs
– Feature vs compliance: choosing Bluetooth or camera features requires deciding whether the buyer will absorb longer certification cycles and higher lab fees.
– In-house vs outsourced testing: suppliers may claim in-house testing, but buyers should insist on third-party lab validation for any certification required by target markets.
Step-by-Step Decision Guide
Stage 1 — Pre-audit document request (remote)
– Ask for: current business license, factory photos, production capacity (SMT lines, injection molding machines, test fixtures), ISO 9001 certificate, BSCI or Sedex if social compliance is required.
– Technical documents to request:
– Full test reports (PDF + raw data) for EN 71 family, IEC 62368-1/EN 62115, RoHS, REACH, IEC 62133, UN 38.3, RED/FCC as applicable.
– Calibration certificates for key test equipment (sound level meter, EMC receivers, thermal chambers) dated within the last 12 months.
– BOM with manufacturer part numbers, date codes, and supplier chains for batteries, SoC, flash memory, and speaker.
– Sample firmware BOM and release notes; evidence of secure bootloader.
– QA procedures, AQL levels, and production control records (SPC charts, defect rates).
Stage 2 — Desk review and red flags
– Verify lab accreditation: test reports must be from accredited labs (ISO/IEC 17025). Cross-check lab names and report numbers on lab websites.
– Verify dates: reports should be recent (≤24 months) and match the exact product model/part number. Generic family reports are not adequate for devices with radio, batteries, or modified firmware.
– Cross-check BOM: spot-check critical components (battery part number, flash part number) against known reputable vendors. High-risk signs: anonymous memory/chips with no vendor; battery without manufacturer ID; mismatch between BOM and the parts listed in test reports.
– Red flags: absence of UN38.3 for Li-ion cells, no raw EMC data, lack of calibration certificates, test reports that are not model-specific.
Stage 3 — On-site factory technical audit
– Production capability verification:
– SMT (number of lines, solder paste inspection SPI units, AOI presence).
– X-ray for BGA/hidden solder joints.
– Functional test jigs per SKU and automated test coverage percentages (e.g., 100% functional testing recommended).
– Aging/burn-in ovens and documented burn-in programs (duration & temp).
– Injection molding capability and mold maintenance logs.
– Quality system walk-through:
– IQC: sample checklists for incoming batteries, modules, and speakers; supplier approval matrices.
– Process control: work instructions, SPC logs, defect Pareto charts, corrective action reports.
– FAI: first article inspection documentation and approval flow.
– Firmware and content security:
– Review the version control system (Git or equivalent) and signed build artifacts.
– Confirm presence of secure bootloader and mechanism for signed OTA updates.
– Product testing on-site:
– Verify sound levels with calibrated sound level meter at specified distances and volumes.
– Run OID recognition tests under variable lighting with test pages from expected book printers.
– Inspect battery compartment/accessibility; attempt to open battery without tools.
– Randomly select units for disassembly to confirm BOM traceability and solder quality.
Stage 4 — Sample and pilot validation
– Request pre-production samples and a pilot batch (500–2,000 units depending on program size).
– Independent lab testing: submit pilot samples to an ISO/IEC 17025 lab for full certification tests, not just desk-review reports.
– Acceptance criteria:
– AQLs: Recommend ANSI/ASQ Z1.4 with AQLs set as critical = 0, major = 0.65, minor = 1.5 for final inspection.
– Target defect rate: <2,000 PPM initial; scale target to <500 PPM at steady-state production.
– OID recognition target: ≥99.5% for random sample of ≥10,000 taps under variable lighting.
– Battery safety: pass IEC 62133 and UN38.3 tests.
– EMC/Radio: full RED/FCC compliance for units with radio.
– Logistics pilot: perform a complete ship test including carton, inner packaging, and shipping simulation (vibration, compression) and then test functionality upon receipt.
Stage 5 — Contract and ongoing control
– KPI clauses: on-time delivery %, PPM targets, warranty/return rates, penalty clauses for failed certifications or recalls.
– Intellectual property: NDA, IP assignment for custom hardware and software, audit rights for source code or firmware builds.
– Change control: formal process requiring buyer approval for BOM changes, alternate component sourcing, or firmware changes.
– Ongoing testing: schedule annual or every-change re-testing and request notification of component end-of-life that could trigger requalification.
Pricing and Cost Analysis
Unit BOM drivers
– SoC/Bluetooth module: $2–$12 depending on capabilities and scale.
– Flash memory: $0.50–$4 depending on size and supplier.
– Speaker & amplifier: $0.40–$3.
– Battery: $0.8–$3 depending on capacity and certification status.
– Optical sensor / camera module: $0.3–$8 (camera much higher).
– Enclosure and injection molding: per-unit tooling amortization depends on order size; expect $0.5–$6 per unit.
– Assembly & testing: $0.8–$3 per unit depending on automation level.
Example FOB price ranges (indicative for guidance)
– Basic OID pen (8–32 MB flash, small speaker, NiMH or small LiPo, no radio): FOB $6–$12 at volumes ≥5k.
– Mid-range (64–256 MB, Li-ion, 2–3W speaker, rechargeable, basic charge circuit): FOB $12–$20 at volumes ≥5k.
– Advanced (camera or Bluetooth/Wi‑Fi, 512 MB–4 GB, TTS, encryption): FOB $22–$40+ depending on features and certification scope.
Certification and testing costs (one-off and recurring)
– EN 71 family / ASTM F963: $2k–$8k depending on the number of parts tested and laboratory fees.
– IEC 62133 (battery) and UN 38.3 (transport): $2k–$6k combined depending on cell manufacturer and tests required.
– EMC and Radio (RED / FCC): $3k–$12k depending on test matrix, necessary modules, and re-runs.
– Chemical testing (RoHS/REACH, phthalates, PAHs, heavy metals): $500–$3k per test set.
– Combined comprehensive certification campaign: $7k–$25k typical for devices with radio + battery + toy safety tests.
Other costs to budget
– Tooling for injection molds: $2k–$50k+ depending on complexity (single cavity vs multi-cavity).
– Test jig development: $1k–$10k.
– Pre-production pilot losses and yield improvement runs.
– Firmware development and secure OTA infrastructure.
Total landed cost considerations
– Factor in duties, freight, packaging, local certification adjustments (US/CAN), and a buffer for potential re-testing.
– For example, a mid-range pen with FOB $15 may have a total landed cost (DAP or CIF) of $18–$22 depending on freight and duties.
Competitive Landscape
Supplier archetypes
– Component-assembly specialists: small firms focusing on ODMs; competitive pricing but variable QA maturity. Strength: low-cost BOMs. Weakness: inconsistent certification dossiers and potential counterfeit risk.
– Integrated manufacturers with in-house labs: mid-size factories that own SMT, molding, and test labs. Strength: faster iterations, credible test reports. Weakness: higher unit costs.
– Brand-focused OEMs with global certifications: larger suppliers used by established toy brands. Strength: proven compliance, supply chain traceability, and capacity. Weakness: higher MOQs and price.
Regional considerations
– China remains the dominant manufacturing base for talking pens, offering the broadest supplier pool and competitive pricing. Suppliers in Shenzhen/Guangdong and Zhejiang typically have accessible SMT capacity, molding, and test houses.
– Taiwan suppliers often provide stronger electronics engineering and higher-quality components but higher cost.
– Vietnam and Bangladesh are growing for assembly-only models, but component sourcing and radio certification complexities usually pull manufacturers back to China for integrated supply chains.
Typical supplier differentiation points
– Quality of in-house test lab vs reliance on third-party labs.
– Track record with licensed content and DRM implementations.
– Ability to deliver signed technical files for EU DoC and to support customs/retailer audits.
– Range of reference customers and export markets served.
Sourcing strategy recommendations
– For private-label programs with tight budgets: choose suppliers with credible third-party certifications, but limit features (avoid radio/camera) to reduce complexity.
– For brand/licensed programs demanding richer UX: select suppliers with in-house engineering, documented secure software practices, and prior experience with licensed content requiring DRM.
What Buyers Say
Common buyer priorities
– Buyers stress the importance of raw test data and calibration certificates. Many buyers report receiving “summary” test reports that do not match the shipped product.
– Consistent complaints center on component substitutions without notice: memory chips, batteries, or speakers replaced to cheaper variants, causing field returns.
– Faster turnaround and lower retest liability are valued. Buyers prefer suppliers who keep web-hosted technical files and re-test samples for every shipment.
Measured performance indicators buyers request
– On-time delivery rate target 95%+.
– Initial PPM goal <2,000; long-term <500.
– Warranty claim rate <2% first year for educational use; lower thresholds for retail channels.
– Sample-to-production yield: buyers require a verified pilot-run yield ≥95% before committing to mass orders.
Reference-order validation experience
– Buyers who inspected reference orders and contacted end customers found: factories with good QA culture could back up claims with objective metrics (defect logs, audit trails, test data). Where factories refused references or provided uncontactable references, buyers reported higher program risk.
Lessons learned
– Never accept a lab report without confirming the exact model number, firmware version, and serial numbers used in testing.
– Make battery and radio certification a contractual obligation; a failed test after mass production creates large liabilities.
– Treat firmware as a critical piece of the product; insist on signed firmware and source-control evidence.
Safety, Maintenance and Compliance
Key safety standards to verify
– Toy safety: EN 71-1 (Mechanical and physical properties), EN 71-2 (Flammability), EN 71-3 (Migration of certain elements — heavy metals). For the US, ASTM F963 compliance is broadly used.
– Electrical safety: IEC 62368-1 (audio/video & ICT equipment) or EN 62115 (electrical toys) depending on market and interpretation; obtain guidance from the notified body on exact scope required for your product.
– Battery safety: IEC 62133 for safety of portable sealed secondary cells and batteries; UN 38.3 for air transport of lithium batteries.
– EMC and radio: EN 55032/55035, EN 301 489 series, EN 300 328 for 2.4 GHz. For EU market, RED 2014/53/EU requirements apply. For US market, FCC ID and Part 15 compliance.
– Chemicals and materials: RoHS, REACH SVHC checks, and phthalate limits typical for children’s products.
Operational safety checks
– Secure battery compartment design (screw-secured) to prevent child access.
– No small detachable parts that can be swallowed; confirm compliance with small-parts standard for the intended age group.
– Flame retardancy of plastics and packaging to meet EN 71-2.
– Clear labelling: age grading, battery warnings, correct disposal instructions, and manufacturer contact information per regulatory markets.
Maintenance and serviceability
– Provide clear user manual across target languages and local law requirements.
– Battery maintenance: recommended charging cycle instructions, storage recommendations, and end-of-life disposal instructions conforming to local battery directives.
– Firmware maintenance: plan for secure OTA or manual update path; include rollback and recovery procedures.
– Spare parts and repair: define availability period for spare parts (recommended 3–5 years) and replacement policies.
Recall and incident readiness
– Supplier must have incident reporting and CAPA process. Request past incident logs and corrective actions for any recalls.
– Contract must specify responsibilities, costs, and legal liability for recalls arising from manufacturing defects, noncompliance, or false test documentation.
Frequently Asked Questions
Q: Can I accept supplier “in-house” test certificates?
A: Use caution. In-house testing is useful for iteration and QC, but regulatory acceptance and retailer requirements usually demand third-party ISO/IEC 17025 lab reports. If supplier provides in-house data, request raw data and calibration certificates for equipment and follow up with independent lab testing for final release.
Q: How can I verify that a test report matches the exact product I will receive?
A: Require traceability: the lab report should list model number and serial number ranges or sample identifiers. Cross-check sample photos of the tested unit (including PCB markings, battery labels, and firmware version). For radio/battery tests, request a copy of the lab’s sample custody sheet and chain-of-custody documentation.
Q: What are reasonable AQL targets for final inspection?
A: Recommended AQLs: critical defects = 0, major defects = 0.65, minor defects = 1.5 using ANSI/ASQ Z1.4 sampling plans. Adjust sample size by lot size; for large shipments use the most stringent levels. Aim for initial production PPM <2,000 and long-term PPM <500.
Q: How many reference orders should I request and what questions to ask?
A: Request at least 2–3 reference orders with buyers of similar size and product features. Ask for: quantity ordered, time of delivery, defect/warranty rates, on-time delivery %, whether tests were done and by whom, and permission to inspect or independently test delivered units. Contact the references directly and corroborate information with independent lab testing where possible.
Q: What is the typical timeline from supplier selection to market-ready product?
A: Bench development and sample validation: 2–8 weeks. Third-party certification testing (full suite): 4–8 weeks (concurrent testing possible). Pilot production and re-testing: 3–6 weeks. Mass production lead time: 6–12 weeks depending on component lead times and order size. Plan 12–24 weeks total for a feature-complete device with radio and battery certifications.
Q: Who pays for certification and retesting?
A: Typically the buyer pays for initial testing for their SKU(s) and any retests caused by design changes. Negotiate responsibility for re-testing if the supplier substitutes components without authorization. Include these terms in the supplier contract.
Contact Toyvao
For technical audits, supplier sourcing assistance, and certification support for Picture Book Reading Pens (Talking Book Pens / Story Pens / OID Reading Pens), contact Toyvao’s sourcing team:
- Website: https://www.toyvao.com — use the “Contact” form for project inquiries and to request audit templates.
- Email: sales@toyvao.com — send your supplier documents and preliminary BOM for a fast review.
- Technical audit support: request a detailed, paid supplier audit package which includes document verification, factory visit checklist, and a lab-test coordination plan.
Provide your target markets (EU/US/Asia), intended annual volumes, and a preliminary BOM when contacting Toyvao to receive a tailored technical audit plan and cost estimate.
