Executive Summary

This guide explains the bulk content transfer and management options publishers and OEMs should evaluate for OID (optical identification) picture-book reading pens — also called story pens, talking pens, or picture-book reading pens. It focuses on content management systems (CMS) and tooling that handle mapping printed page codes to audio/video files, batch ingestion, device-level content distribution, version control, security, analytics, and operational scale.

Key findings:
– The majority of implementation complexity is not the pen hardware but the content lifecycle: ingestion, OID mapping, packaging, bulk transfer, updates, and analytics.
– Two viable architecture patterns exist: purpose-built OID CMS (turnkey feature set for pens) and a modular approach using DAM/MAM + custom transfer layer backed by cloud storage/CDN. Each suits different scale, integration needs and budgets.
– Critical technical requirements: robust OID-to-resource mapping, support for standard audio codecs (MP3, AAC, WAV), bulk transfer via USB/MSC and OTA (Wi‑Fi/BLE), delta updates, signed/encrypted packages, device authentication, and telemetry.
– Cost drivers: storage + CDN egress, per-device transfer method (USB duplicators vs OTA), SaaS vs on-prem licensing, custom integration, and ongoing content updates. Expect hosting + distribution costs of $0.03–$0.20 per delivered MB at scale and CMS licensing or integration fees from $10k to $250k depending on scope.

This guide provides a step-by-step decision process, feature checklist, pricing models and operational metrics to base vendor selection and build vs buy decisions on.

What Is Picture Book Reading Pen and Who Uses It

Product definition

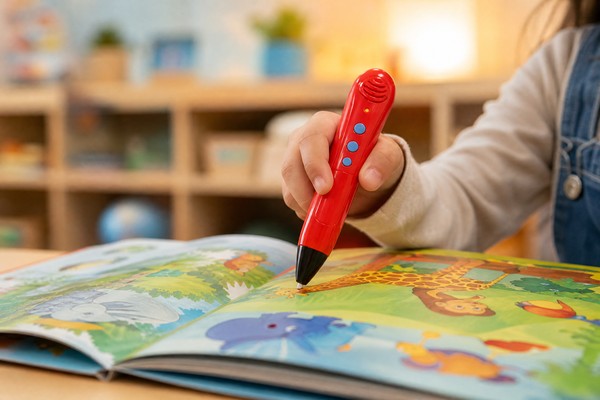

– The Picture Book Reading Pen (OID Reading Pen) is a handheld device with an optical sensor that reads printed codes on pages and plays associated audio/video content. Pressing the pen to a code triggers playback of narration, sound effects, translations, or interactive audio.
– Content is mapped to printed codes (hereafter called OIDs). The OID mapping is the CMS’s core data model: an OID value → audio resource URI + metadata (title, language, duration, narrator, version).

Typical users
– Publishers: children’s book publishers that produce illustrated storybooks and want to ship books with synchronized audio narration. Publishers control large catalogs, frequent updates, and multiple language tracks.
– OEMs / ODMs: hardware manufacturers of pens who provide the devices and reference firmware & tooling. They need scalable content management and device provisioning for large production runs and post-sale updates.
– Educational distributors: reseller groups that deploy pens and books into schools and libraries, requiring centralized device management, bulk loading before distribution, and classroom-level analytics.

Operational scenarios
– Pre-shipment content load: publisher transfers thousands of titles to devices before packaging/distribution using USB duplicators or imaging stations.
– Post-sale OTA update: updates pushed to deployed devices via Wi‑Fi or Bluetooth for new books, corrected audio or added languages.
– Multi-device fleet operations: fleets of 1000+ devices requiring version control, batch reprovisioning, and telemetry aggregation.

Why Demand Is Growing

Market drivers
– Hybrid learning and increased early-childhood edtech adoption drive demand for physical + digital hybrids that combine tactile books with audio interactivity.
– Internationalization: publishers ship multi-language editions and need efficient bulk content management for many language tracks per title.
– Faster product cycles: shorter production times require tools that accelerate audio localization, QA, and deployment across thousands of devices.
– Cost pressure: OEMs and publishers must lower per-unit costs by automating bulk content transfer and minimizing manual device programming.

Operational drivers
– Scale: projects now commonly involve 10k–100k devices per SKU. Manual USB loading is impractical without automation.
– Analytics expectations: educators and parents want usage data (which pages were tapped, time spent, repeat plays) to measure engagement and learning outcomes.
– Security: consumer awareness and regulation increase demand for signed content packages, encryption and child-data privacy controls.

Business consequences
– Slow or error-prone content pipelines increase time-to-market and can lead to costly recalls if incorrect audio is shipped.
– Poor update mechanisms reduce product lifespan and can force hardware replacements instead of simple content patches.
– Inadequate analytics reduce product differentiation and limit ability to iterate content based on usage.

Key Technology Differences

Architecture models
– Turnkey OID CMS: purpose-built for talking-pen workflows. Includes OID mapping UI, batch upload, packaging, device-side client SDK, OTA server or USB imaging agent, DRM signing, and analytics dashboard. Pros: lower time-to-market. Cons: less flexible, vendor lock-in.
– DAM/MAM + Custom Connector: use a digital asset management (DAM) or media asset management (MAM) system to handle media mastering and metadata, then build a custom transfer/service layer to package assets and push to pens. Pros: flexible, reuses enterprise assets. Cons: higher integration cost.
– Cloud-native microservices: S3-compatible storage, Lambda/Cloud Functions for packaging, API gateway, CDN for distribution, and device management via MQTT/HTTP. Pros: scalable and modular. Cons: requires development resources.

Device connection methods
– USB Mass Storage Device (MSC): device mounts as an external disk. Content copied as files. Simple but lacks device control, no verification or atomic update guarantees.
– USB MTP (Media Transfer Protocol): provides metadata-aware transfers; better than MSC for atomic writes but requires driver support.
– Serial over USB / Custom protocol: used by many vendors for controlled transfer, progress reporting and metadata sync.
– Bluetooth (SPP/BLE): low bandwidth; suited for small updates or metadata sync not full audio packages.
– Wi‑Fi OTA: highest convenience for deployed devices, requires device to be online and can use HTTP, HTTPS or MQTT for transfer.

File and audio formats
– Audio codecs: MP3 (ISO MPEG-1/2 Layer III), AAC (MPEG‑4), WAV (PCM), ADPCM are common. Evaluate required sample rates (8kHz for voice-only vs 44.1kHz for music) and bitrates (32–320 kbps).
– Container/manifest: mapping files are often JSON, CSV, or proprietary mapping formats (.map/.mid/.oid). Some systems use SQL/NoSQL-backed mapping services that expose REST APIs.
– Packages: ZIP, tar, or custom encrypted containers with manifest.json and a signature file.

Security and DRM
– Content signing: RSA/ECDSA signatures with manifest verification on device are industry practice.
– Encryption: AES-128/256 for content-at-rest and in-transit; per-device keys or group keys.
– Device auth: UUID/device ID + certificate-based authentication or token-based (OAuth2/JWT).

Analytics and telemetry
– Event types: tap events (OID), play duration, completion, language selection, battery/firmware versions.
– Transport: batched uploads via HTTP(S) or MQTT; local buffering until connection available.
– Storage: time-series DB for events (InfluxDB/Timescale) and relational DB for metadata.

Scalability and throughput considerations
– USB 2.0 theoretical max 480 Mbps; realistic sustained 20–40 MB/s per port. For large fleets, use USB hubs and parallel transfers or hardware duplicators.
– Wi‑Fi transfer speed depends on device radio and network; expect 2–8 MB/s practical throughput for common embedded Wi‑Fi stacks.
– Example: transferring a 10 MB package to 1,000 devices over USB with 50-port hubs and average 5 MB/s per port yields ~40 minutes total (1,000/50 = 20 batches × (10 MB / 5 MB/s) = 40 min).

Key Features and Specifications to Evaluate

Core CMS features
– OID Mapping Engine: supports batch import/export (CSV/JSON), versioning, conflict resolution, and hierarchical OID grouping (book → page → hotspot).
– Bulk Uploads: parallel upload threads, checksum verification (MD5/SHA256), resume capability, and atomic package deployment.
– Packaging & Signing: automated manifest generation, digital signing (RSA/ECDSA), hashing of all payloads, optional encryption per title or per device.
– Device Management: provisioning, device grouping, state reporting, forced-update scheduling, and OTA staging (canary rollouts).
– Transfer Methods: USB agent (CLI + GUI) for pre-deploy loading; OTA server for Wi‑Fi/BLE; support for SD card/TF image export.
– Delta Update/Chunking: ability to compute diffs and send only changed assets (binary delta or chunk-level sync).
– Multi-language & Variant Support: language tracks, narrator metadata, ISRC/ISBN linkage, and variant packaging for region/CUDs.
– Analytics & Reporting: raw event collection, dashboards for engagement metrics, exportable reports (CSV/JSON), and APIs for BI integration.
– Content Workflow: roles/permissions, review & approval workflow, staging/production environments, preflight QA checks (file format, length, bitrates).
– Integration & Extensibility: REST APIs, webhooks for CI/CD, SDKs for device firmware, and plugins for TTS engines or audio mastering.

Performance and operational specs
– Concurrency: number of concurrent transfers supported by server and client (e.g., 5000 concurrent device connections for OTA).
– Throughput: measured in GB/day or MB/s; example requirement — 1 TB/day ingestion and 10 TB egress/month.
– Retention and Archiving: policies for version retention per title (e.g., keep last 5 versions), cold storage options.

Security and compliance features
– Encryption protocols: TLS 1.2/1.3 for transport, AES-256 for storage.
– Key management: HSM or cloud KMS, per-device key provisioning.
– Audit logs: immutability and exportable logs for all content changes and device operations.
– Privacy features: data minimization, opt-in telemetry, anonymization/pseudonymization for child users.

UX and operational tooling
– GUI: web console for asset management, batch job monitoring, device fleet views, and rollbacks.
– CLI/Automation: headless tools for CI integration and mass operations.
– Local imaging tools: Windows or Linux imaging agents supporting USB hubs and duplicators with logging and device labels.

Support and SLA
– Support levels: standard business hours vs 24/7, escalation matrices, and response SLAs (e.g., P1 within 2 hours).
– Hosting SLA: uptime guarantees (99.9%+), backup frequency (daily snapshot, hourly RPO for critical data).

Pros and Cons

Turnkey OID CMS (pros)
– Ready-made workflows optimized for pen/book use cases: faster deployment.
– Built-in packaging, signing, and device SDK reduces integration time.
– Often includes analytics dashboards tailored for engagement metrics.

Turnkey OID CMS (cons)
– Vendor lock-in: proprietary formats and device SDKs can complicate migration.
– Limited flexibility for enterprise DAM integration or custom workflows.
– Pricing can be higher per-device at large scale.

DAM/MAM + Custom Connector (pros)
– Reuse existing media assets and metadata, centralized asset management across business lines.
– Flexible integration: you can adapt transfer workflows to business logic and reuse standard enterprise authentication.
– Potential cost savings at scale via commodity cloud services.

DAM/MAM + Custom Connector (cons)
– Higher upfront development cost and longer time-to-market.
– You must build robust device-side client, OTA server and signing workflows.
– Ongoing maintenance burden for bespoke connectors.

Cloud-native microservices (pros)
– Highly scalable and pay-as-you-go cost model.
– Fine-grained control over architecture, observability and cost optimization (spot instances, lifecycle rules).
– Easier to integrate with third-party analytics and global CDNs.

Cloud-native microservices (cons)
– Requires cloud expertise and devops to design secure pipelines and achieve compliance.
– More components to secure and monitor (storage, functions, APIs, CDN).
– Potential for egress cost overruns if not architected correctly.

Operational pros/cons impacted by transfer method
– USB duplication (pros): high throughput per device; reliable in factories. (cons): manual operations, hardware cost for duplicators, limited update flexibility after sale).
– OTA (pros): remote updates, scalable via CDN, convenient for consumers. (cons): depends on device connectivity and has higher per-update complexity).

Step-by-Step Decision Guide

Step 1 — Define scale and update model
– Estimate initial devices and annual growth. Example thresholds: small (≤5k devices), medium (5k–50k), large (50k+).
– Determine update frequency: one-off pre-load, periodic updates (monthly), or continuous content releases.

Step 2 — Map transfer methods to use cases
– If pre-shipment only and devices lack Wi‑Fi: plan for USB duplicator + local imaging station.
– If deployed devices need dynamic updates: require OTA server, device auth and CDN.
– Hybrid: pre-load with USB and enable OTA for patches.

Step 3 — Specify technical requirements
– Audio formats & size: e.g., MP3 64 kbps for narration (≈480 KB/min), 44.1 kHz 128 kbps for music (≈960 KB/min).
– Manifest: choose JSON or CSV with columns: OID, resource_uri, language, duration, checksum, version.
– Security: require AES-256 encryption at rest and RSA-2048/ECDSA-256 signing of manifests.

Step 4 — Choose architecture pattern
– Small publisher with low integration resources: evaluate turnkey OID CMS vendors.
– Enterprise publisher/OEM with existing DAM: integrate DAM + custom connector + cloud-native transfer.
– Large-scale fleet and strict security: on-prem CMS or private cloud with HSM for keys.

Step 5 — Evaluate vendors and tools
– Checklist: OID mapping UI, bulk upload speed, packaging and signing, device management (grouping, rollout), analytics, SLAs, integration APIs, pricing model (per-device vs per-GB vs flat).
– Proof-of-concept: load a representative batch (e.g., 100 titles, 3 languages, ~10MB/title) and measure end-to-end throughput, error rates, signing time, and device verification success.

Step 6 — Plan operations and QA
– Build preflight checks: filename validity, codec validation, duration thresholds, checksum verification.
– Define rollback and staged rollout policies (10% canary → 50% → 100%).
– Prepare device recovery workflows: USB re-imaging, offline update via microSD, or local kiosks in retail/school.

Step 7 — TCO and procurement
– Model costs across 3 years: hosting, CDN, device transfer hardware, CMS license, integration, and content production.
– Include operational headcount for device ops, QA and support.

Step 8 — Rollout and iterate
– Start with pilot 1–5% of fleet, collect telemetry for errors and user engagement, refine packaging and update cadence, then scale.

Pricing and Cost Analysis

Cost components
– CMS Licensing: SaaS per-device per-month or per-seat pricing; on-prem perpetual license. Typical ranges:
– SaaS: $0.10–$2.00 per device per month (volume discounts apply).
– On-prem: $10k–$200k one-time license plus annual maintenance 15–22%.
– Custom build: $50k–$500k depending on scope and integrations.
– Integration & Setup: one-time professional services $5k–$150k. Includes connectors, SDK integration, packaging rules, QA automation.
– Storage and CDN:
– S3 storage: $0.023/GB-month (standard), Glacier $0.004/GB-month for archives.
– CDN egress: $0.02–$0.12/GB depending on region and volume.
– Example: 100k titles × 5 MB/title = 500 GB storage = ~$11.5/month; monthly egress 1 TB = ~$20–$120.
– Transfer hardware:
– USB duplicator: single-port units $100–$500; high-capacity duplicators $2k–$10k (16–64 ports).
– Imaging station with robust hubs and logging: $3k–$15k.
– Bandwidth and network: enterprise-grade uplink $100–$2,000/month depending on capacity.
– Ongoing operations: 0.5–3 FTEs depending on scale for device ops and QA. Salary ranges depend on location.

Example TCO scenarios (3-year)
– Small publisher (5k devices, pre-load only)
– CMS SaaS: $1,000/year ($0.02/device/month if vendor offers minimal plans).
– Integration: $10k one-time.
– USB hardware: $3k.
– Storage/CDN: negligible.
– 3-year TCO ≈ $20–30k.

• Mid-size (50k devices, OTA support, 3 languages)
• CMS SaaS: $0.50/device/month → $300k/year.
• Integration & SDK: $50k.
• Storage/CDN: $5k/month → $180k/3 years.
• Device ops (1 FTE): $90k/3 years.

• 3-year TCO ≈ $650–700k.

• Large OEM (500k devices, global OTA)

• On-prem CMS + custom cloud: $250k one-time + $75k/year maintenance.
• Integration & dev: $300k.
• Storage/CDN: $15k/month → $540k/3 years.
• Device ops (3 FTEs): $540k/3 years.
• Hardware for factory loading: $50k.
• 3-year TCO ≈ $1.7–2.0M.

Cost optimization levers
– Use lower bitrate audio for voice-only narration (e.g., 32–64 kbps MP3) to reduce storage and egress.
– Employ delta updates and deduplication to reduce OTA egress.
– Batch deployments to minimize CDN cache churn and leverage regional edge caches.
– Negotiate bulk CDN/egress rates for large volumes.

Competitive Landscape

Vendor categories
– Purpose-built OID CMS vendors: provide end-to-end solutions including mapping UI, device SDK, packaging, signing, OTA, and analytics. These vendors deliver the fastest time-to-market.
– DAM/MAM providers with connectors: enterprise DAMs (commercial) that can be extended via API to serve pens. Suitable for publishers with a broader digital content strategy.
– Cloud-native integrators and system integrators: companies that design bespoke solutions using AWS/Azure/GCP components (S3, CloudFront, Lambda, IoT Core).
– Device management / IoT platforms: use IoT device management as the backbone for OTA and telemetry (AWS IoT, Azure IoT Hub), paired with a CMS layer for content mapping.
– Local OEM partners and hardware vendors: supply imaging hardware, duplicators, and on-site loading services.

Selection considerations
– Turnkey vs flexible: turnkey reduces project risk but increases vendor dependence.
– Regional support and data residency: publishers operating in EU must consider GDPR and may prefer vendors offering EU hosting.
– Integration: check availability of SDKs (C, C++, Java, Android, embedded Linux) and sample code for quick firmware integration.
– Track record: prefer vendors with successful deployments of similar scale (ask for references and metrics: devices managed, titles delivered, average update size).

Partnership models
– Managed service: vendor handles all content ops and distribution for a fee (suitable for publishers without ops capacity).
– White-label CMS: vendor provides a branded CMS and APIs while the publisher/OEM controls content.
– Licensed platform: full access to source/hosted platform for deep integration and on-prem deployment.

What Buyers Say

Common buyer feedback themes (aggregated)
– “Reliability of OID mapping matters more than fancy UI.” Buyers prioritized accuracy of mapping (zero-mismatch between printed OID and audio) and manifest signing. A single mis-mapped OID can cause significant returns and brand damage.
– “Delta updates save significant bandwidth.” Buyers who implemented chunked/diff updates reduced egress costs by 40–70% when updating language packs or narration corrections.
– “USB duplication remains critical for factories.” Even with OTA capability, successful mass production still relies on USB imaging due to offline supply chains and secure pre-shipment loading.
– “Analytics turned products into repeatable revenue.” Publishers who tracked tap events and completion rates identified best-performing pages and optimized content, improving upsell conversions by measurable margins.
– “Integration cost is underestimated.” Many buyers reported integration and QA took 25–40% more time/cost than initial estimates, primarily for edge cases like interrupted transfers and signed manifest verification failures.

Buyer pain points
– Lack of consistent transfer tooling across device firmware versions leading to failed updates.
– Insufficient visibility into device state during pre-shipment loading — lacked per-device logs and accountability.
– Inadequate DRM models that either were insecure or overly restrictive (preventing updates).

Best-practice buyer tips
– Require a full POC with 100+ devices and real-world network conditions.
– Insist on audit logs and sample telemetry during the trial phase.
– Verify content signing process end-to-end: signature generation, verification on device, and rollback behavior.

Safety, Maintenance and Compliance

Regulatory requirements
– COPPA (US): if collecting any personal data from children under 13, comply with parental consent and data minimization. Minimize telemetry tied to identifiable child accounts.
– GDPR (EU): lawful basis for processing, data subject rights, data localization if required. Use anonymization/pseudonymization for analytics.
– Children’s content: some markets have specific rules on advertising, in-app purchases or content appropriateness — ensure content categorization and regional restrictions.

Device safety and hardware compliance
– CE (EU), FCC (US) for radio and electromagnetic compliance.
– RoHS and REACH for hazardous substances in hardware.
– Battery safety standards (UN38.3, IEC 62133) for lithium cells included in pens.

Security & data protection
– Secure boot and firmware signing to protect against malicious firmware.
– Key management with HSM or cloud KMS; rotate keys on a defined schedule.
– Encrypted manifests and per-device or per-group keys to limit impact of a leaked package.
– Implement rate limiting and anomaly detection on API endpoints to prevent abuse.

Maintenance
– Firmware update cadence: plan regular firmware updates with canary rollout and staged deployment; provide fallback to previous configuration.
– Content retention: maintain archived versions for at least the life of the product + 2 years for auditability.
– Disaster recovery: hot/warm backups for CMS and daily snapshots for asset storage; RPO/RTO targets defined in SLA.

Quality assurance
– Preflight automatic checks: codec validation, duration limits, manifest integrity tests.
– Device-side validation: verify checksum and signature before activation; atomic swap for new packages to avoid partial states.
– Test harness: simulate intermittent power/network to ensure transfer robustness.

Frequently Asked Questions

How large is a typical audio package and how does that affect distribution?
– Narration-only: 1 minute ≈ 480 KB at 64 kbps MP3. A 20-page book with 30s/page ≈ 4.8 MB total (64 kbps). Higher quality tracks (128 kbps) double the size. Use delta updates and per-track deduplication to reduce re-transmission.

Which transfer method is most reliable for factory pre-loading?
– USB via controlled imaging stations and hardware duplicators. Use a mass-imaging tool that supports checksums, logging and labeling. Aim for 8–64 port duplicators depending on scale; supplement with a secondary validation pass.

What security is recommended for children’s audio content?
– Encrypted packages (AES-256), manifest signing (RSA/ECDSA), secure key provisioning and device authentication. Limit telemetry to anonymized event IDs and avoid storing PII.

Can publishers use TTS instead of human narration to reduce cost?
– Yes. TTS reduces cost and speeds localization. Evaluate TTS quality at target bitrates and include prosody/post-edit. TTS files can be smaller if generated at targeted sampling rates and bitrates.

How do I handle corrections to shipped content?
– If devices have OTA capability, issue a signed patch package and use staged rollouts. If devices are offline, prepare instructions and local re-imaging options or exchange programs. Maintain versioned manifests for traceability.

What analytics metrics are most valuable?
– Unique devices, active sessions, taps per page, average listen time per title, drop-off points, language selection rates, and firmware version distribution. Use event batching to minimize bandwidth.

How to minimize CDN and egress costs?
– Reduce payload size via lower bitrate audio where acceptable, deduplicate identical tracks across titles, use delta updates, and leverage regional caching and long TTLs.

Contact Toyvao

For assistance selecting or integrating a CMS for OID reading pens, batch content transfer infrastructure, or for a technical POC tailored to your scale and workflow, contact Toyvao:

• Website: https://www.toyvao.com
• Sales & Integration Inquiries: sales@toyvao.com
• Support & Technical Questions: support@toyvao.com
• Request a POC: https://www.toyvao.com/contact

Provide project details when contacting: expected device volume, number of titles and languages, current asset formats, required transfer methods (USB/OTA), and compliance/regulatory constraints. Toyvao can advise on vendor selection, build vs buy tradeoffs, and produce an initial TCO and implementation roadmap.
