Executive Summary

This guide explains end-of-life (EOL) and recycling options for Picture Book Reading Pens (also called Talking Book Pens, Story Pens, OID Reading Pens) targeted to B2B buyers: distributors, school systems, publishers, manufacturers, and large-volume retailers. It covers regulatory obligations (WEEE, Batteries, RoHS), practical take-back models (producer take-back, Producer Responsibility Organizations / PROs, retail collection, third-party reverse logistics), technical disassembly and material flows, costs and KPIs, and operational steps for an EOL program that is legally compliant and cost-effective.

Key facts and recommendations:
– Classify devices early: many jurisdictions treat talking book pens as either “toys” or “consumer electronic equipment” for WEEE and EPR purposes — classification drives fees, reporting and collection targets.
– Battery handling: remove and separately manage Li-ion or button-cell batteries. Transport of devices containing lithium cells must comply with UN 38.3 and local ADR/IATA rules.
– Compliance outputs: WEEE marking (crossed-out wheeled bin) and appropriate battery symbols are mandatory in the EU and most OECD markets; maintain EEE placed on market and WEEE collected records for at least 4–5 years.
– Typical per-unit EPR and recycling costs: ranges widely — expect €0.30–€2.50 per pen for WEEE/EPR fees and collection, plus €0.50–€4.00 for battery recovery depending on battery chemistry and volume. Use volume forecasts to negotiate lower unit rates.
– Reuse and refurbishment deliver highest lifecycle value: refurbishment can retain 30–70% of new-unit value if secure erase, battery replacement, and cosmetic repair are competitive.
– Illegal export risk: WEEE exports to non-OECD countries without Basel Convention notification and consent can produce legal and reputational liability; use certified recyclers and require proof of destination and treatment.

This guide provides the decision steps, cost benchmarks, technical considerations and contract language elements buyers need to design an EOL program that meets legal obligations and business requirements.

What Is Picture Book Reading Pen and Who Uses It

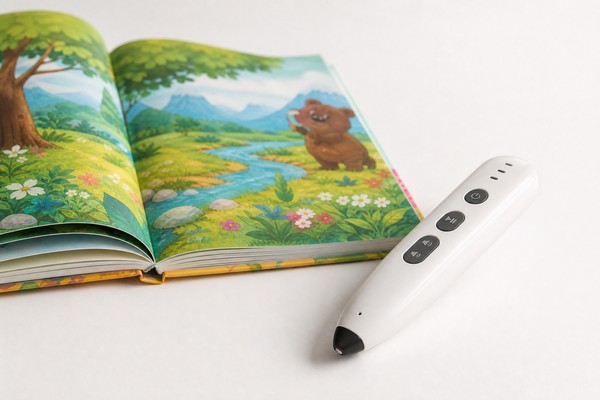

Talking Book Pens are portable, child-focused electronic reading aids that playback pre-recorded audio when the pen tip taps specially encoded picture books. Typical components:
– Plastic housing: commonly ABS (Acrylonitrile Butadiene Styrene), PC (polycarbonate), PP (polypropylene), sometimes TPE for grips.
– PCB: microcontroller (ARM Cortex-M0/M3), flash storage (NAND/ROM or microSD removable), speaker (8–30 mm), microphone (optional), proximity or capacitive sensors.
– Power source: sealed rechargeable Li-ion/Li-poly battery (typical 3.7 V, 150–800 mAh) or disposable button cells (LR44, AG13) in low-cost models.
– Connectivity: USB 2.0 micro-B or Type-C for charging/data; some include Bluetooth LE or Wi‑Fi for OTA content updates.
– Firmware and audio: 8–32 kHz mono/stereo audio codecs, speech files (MP3/ADPCM), metadata for book mapping.

Typical buyers and use cases:
– Publishers and educational content providers purchasing in volumes of 1,000–100,000+ units for bundled products.
– Retailers and distributors stocking consumer SKUs (1,000–50,000 units per SKU).
– Schools, libraries and non-profit literacy programs procuring pens for classroom sets or outreach.
– OEMs/EMS arranging manufacturing and post-consumer services for branded units.

EOL considerations vary by buyer type: educational institutions may require on-site collection and secure wipe before resale, while retailers require reverse logistics for returns and national WEEE compliance.

Why Demand Is Growing

Demand for EOL and recycling solutions for talking book pens is rising for these reasons:
– Volume growth: global shipments of interactive reading devices and edutainment toys increased in the 2010s and early 2020s; major education initiatives and digital content bundling drive higher placements of these low-weight EEE (electrical and electronic equipment).
– Regulatory tightening: EU and many national laws have raised obligations on producers (Extended Producer Responsibility, EPR) and introduced separate battery collection obligations. Non-compliance risks penalties, banned imports and suspension of sales.
– Supply chain sustainability pressure: institutional buyers (schools, publishers, large retailers) require documented circular economy practices and end-of-life metrics from suppliers.
– Hazard and safety concerns: lithium batteries, small button cells, and mixed plastics create fire and chemical hazards if improperly handled in municipal streams or in the recycling process.
– Brand and resale value: refurbishment programs for classroom use and secondary markets are increasingly used to recoup value, reduce cost-per-use and demonstrate sustainability credentials.

For buyers placing tens of thousands of units a year, even small per-unit EPR fees or improper disposal liabilities can translate to significant expense and compliance risk.

Key Technology Differences

Understanding device architecture affects EOL strategy. Key distinctions that change recycling and take-back handling:

Battery type and placement
– Removable disposable button cells (e.g., LR44/AG13): easier to separate but require specific recycling streams for alkaline or zinc-air chemistry. Button cells with mercury were banned earlier, but check for modern chemistry and markings.
– Sealed Li-ion/Li-poly (3.7 V, 150–800 mAh): higher fire risk in transport and mechanical shredding; must be removed before bulk shredding or handled by recyclers with battery-specific processes. Requires UN 38.3 certification for transport of intact cells.

Data storage and privacy
– Removable microSD vs onboard NAND/EMMC: removable media must be removed and either securely wiped or destroyed. Onboard flash requires secure-erase procedures or physical destruction for privacy-critical deployments (e.g., school recordings of children).

Connector and charging interface
– Devices with USB-C and user-serviceable battery compartments are easier to refurbish and test. Epoxied housings increase recycling cost and lower reuse potential.

Materials and adhesives
– Snap-fit housings with standard screws (M2–M2.5 Phillips) enable disassembly in 2–5 minutes per unit. Ultrasonic welding or strong adhesives add labor/time and raise recycling cost by €0.20–€1.00 per unit.

Speakers and motors
– Speakers, vibrating motors and metal components have high scrap value relative to plastics and can be separated for higher recovery yields.

Design for disassembly (DfD)
– Units designed with visible screws, color-coded fasteners, and modular batteries reduce labor and increase reuse rates. Expect 30–60% reduction in dismantling time vs fully glued units.

Manufacturing/environmental marks
– RoHS compliance (substance thresholds: 0.1% w/w for most restricted substances; cadmium 0.01% w/w) matters for acceptance at many recyclers and for export of treated materials.

Key Features and Specifications to Evaluate

When assessing EOL options and supplier commitments, evaluate the following specific items and metrics:

Regulatory and documentation items
– WEEE registration number: verify supplier or producer has registration in the jurisdiction(s) where devices will be sold.
– PRO membership certificate or proof of an active producer take-back scheme.
– Battery Directive / national battery producer registration and battery labeling compliance.
– RoHS Declaration of Conformity and test reports (e.g., ICP-OES or XRF screening) with sample concentrations for Pb, Hg, Cd, Cr6+, PBB, PBDE and RoHS-3 phthalates.
– CE marking status and technical file (for EU market access).

Labeling and product markings
– Crossed-out wheeled bin symbol on product and packaging.
– Battery disposal label and chemical symbol on batteries (Pb/Cd/Hg) where applicable.
– Maintenance/repair instructions and service parts availability documentation.

Take-back model specifics
– Scope: geographic coverage, inbound logistics, collection points, retailer take-back obligations.
– KPIs: collection rate target (% of units placed on market collected), target reuse/refurbish ratio, recycling recovery rates for plastic/metal and battery recovery.
– Reporting cadence and format: monthly, quarterly, annual submissions; format for national authorities.

Refurbishment and secure data handling
– Secure erase protocol for onboard flash (overwrite standards such as DoD 5220.22-M or NIST SP 800-88, if applicable).
– Battery health testing: accepted thresholds for refurbishment (e.g., capacity ≥80% of nominal).
– Cosmetic acceptance criteria and spare parts availability.

Reverse logistics and transport
– UN 38.3 test status for shipped batteries; ADR/IATA compliance for cross-border shipments containing lithium batteries.
– Palletization and packaging standards for returns; recommendations to avoid crushed or damaged battery cells.

Recycling and materials recovery
– Expected metal recovery: >90% for ferrous and non-ferrous metals with standard processes.
– Plastic recycling yield: 20–60% effective recycling rate depending on separation and contamination; mixed ABS/PC often downcycled.
– Battery material recovery: hydrometallurgical processes commonly recover cobalt/nickel >90%; lithium recovery varies 50–80% based on process.

Cost metrics and service-level agreements (SLAs)
– Per-unit collection fee ranges (see Pricing section).
– SLA for pickup at 48–72 hours for B2B flows; 7–14 days for retail collections.
– Audit rights and certificates of destruction / material recovery.

Pros and Cons

Pros of organized take-back and recycling for talking book pens
– Regulatory compliance: avoids fines, import bans, and retailer delisting.
– Cost recovery: refurbishing and resale can recover up to 30–70% of new-unit value depending on condition and demand.
– Brand protection: verified recycling and safe battery handling reduce fire risk and reputational damage.
– Circularity: recovered metals and reusable modules lower material procurement costs and secure supply for critical components.
– Reduced landfill liability and environmental impact.

Cons and challenges
– Low unit weight and mixed-material construction make per-unit recycling expensive relative to scrap value.
– Li-ion batteries increase handling and transport costs; require segregated logistics and specialist recyclers.
– Cross-border complexity: differing national WEEE and battery rules create administrative burden for multi-country sellers.
– Data privacy: onboard storage requires secure erase procedures that add time and cost to refurbishment.
– Market volatility: value of recovered plastics is low and fluctuates; depends on quality of sorting and demand for recycled resin.

Operational trade-offs
– Centralized vs decentralized collection: centralized (consolidated pallets) reduces per-unit transport but increases initial logistic coordination; decentralized (retailer drop-off) lowers transport distance for consumers but raises handling costs.
– Reuse vs recycling: reuse and refurbishment deliver superior environmental and financial returns where feasible, but require structured QA, parts inventory and secure wipe.

Step-by-Step Decision Guide

This step-by-step guide is for B2B buyers (distributors, publishers, OEMs) designing an end-of-life program for Talking Book Pens.

Step 1 — Classify and map obligations
– Determine the product category in each jurisdiction: toy, consumer electronics, or IT/telecom. Classification affects EPR fees and reporting lines.
– Identify battery chemistry and whether it is removable. Record weight per unit (g), battery type and capacity (mAh), and number of units expected per year.

Step 2 — Legal compliance and registrations
– Register as a producer with national authorities or join a local PRO/PCS. Obtain WEEE and battery registration numbers before market placement.
– Prepare RoHS and CE technical files and ensure printed markings (wheeled bin, battery) are on product and packaging.

Step 3 — Choose take-back model
Options:
– In-house producer take-back: full control, highest administration and capital expense.
– PRO/PCS membership: common model in EU; pay fees and transfer reporting obligations to scheme operator.
– Retailer collection partnership: retailer handles returns at point-of-sale; producer pays PRO or collects centrally.
– Third-party reverse logistics + certified recycler: outsource collection and treatment; include audit rights and certificates.
Select based on volume, geography and cost. For volumes <5,000 units/year, PRO/PCS often more cost-effective.

Step 4 — Design reverse logistics
– Set collection points (retail, schools, municipal drop-off) and B2B pickup frequency.
– Define packaging for returns: require devices to be sent with batteries removed where feasible; mandate packaging to prevent crushing of batteries.
– For cross-border returns, ensure compliance with ADR/IATA (UN 38.3 for lithium) and Basel Convention if exporting waste.

Step 5 — Select recyclers/refurbishers
– Require third-party recyclers to hold certifications: e.g., ISO 14001, ISO 45001, R2 (Responsible Recycling), eStewards (if relevant).
– Request process flow documentation: battery removal, data wiping, mechanical separation, material recovery percentages, final destination of materials.
– Ask for auditable proof: weight-based recovery reports, certificates of destruction, and chain-of-custody documentation.

Step 6 — Define refurbishment criteria and secure data handling
– Acceptance criteria: battery capacity threshold (commonly ≥80% for reuse), cosmetic grade, and functional testing (buttons, speaker, microphone).
– Data handling: adopt secure-erase standard (NIST SP 800-88 or equivalent) or physical destruction of storage if device cannot be reliably wiped.
– Record serial numbers and chain-of-custody for reused units to avoid cross-contamination with EOL streams.

Step 7 — Establish KPIs and reporting
– KPIs: collection rate (% of placed-on-market target), reuse rate, recycling recovery rate (mass%), battery recovery rate, time-to-collection SLA.
– Reporting cadence: monthly operational reports, quarterly performance reviews, annual compliance reports for authorities.

Step 8 — Contractual protections and pricing
– Include indemnities for illegal export, misclassification, and failure to meet recovery rates.
– Negotiate unit-based fees with volume bands and volume-incentive discounts.
– Require right to audit, minimum data sets, and termination rights for non-compliance.

Step 9 — Implement pilot and scale
– Start with a pilot in a single country or region (3–6 months), measure real collection yields, return rates and refurbishment outcomes.
– Scale across regions after process optimization and supplier performance validation.

Step 10 — Continuous improvement
– Feed outcomes to product design: request greater modularity, standard screws, battery compartments and labeling to reduce EOL costs.
– Track material prices and adjust EPR budgeting and contract rates annually.

Pricing and Cost Analysis

EOL costs vary by jurisdiction, battery chemistry, volume, and device design. The table below summarizes typical per-unit cost ranges and drivers for a standard talking book pen (unit weight 70–200 g, battery 200–500 mAh Li-ion or 2–4 button cells).

Per-unit cost components (EUR, approximate)
– Producer responsibility (EPR) fee: €0.10–€1.50
– Drivers: classification (toy vs consumer electronics), weight, national fee schedules.
– Collection and reverse logistics: €0.05–€0.80
– Drivers: collection point density, pickup frequency, consolidation effort, palletization.
– Battery removal and handling: €0.20–€1.50
– Drivers: battery chemistry (Li-ion higher), manual removal time, special packaging/ADR compliance.
– Recycling and treatment (non-battery): €0.10–€0.80
– Drivers: disassembly complexity, plastic contamination, need for sorting.
– Data destruction / secure erase: €0.02–€0.30
– Drivers: onboard flash size, manual wipe or automated bulk-wipe systems.
– Administration, reporting and audit: €0.02–€0.20
– Drivers: compliance reporting complexity and cross-border filings.

Typical total per-unit cost: €0.49–€5.10

Examples and notes:
– Low-cost models with no Li-ion battery, minimal documentation, sold in domestic single-country volumes: €0.50–€1.50 per unit.
– Units with sealed Li-ion batteries sold in EU across multiple countries: €1.20–€4.00 per unit.
– Refurbishment credit: refurbished units resold to schools/NGOs can recover €5–€25 per unit depending on condition and contract pricing.

Negotiation levers to reduce costs:
– Volume bands: secure discounted EPR and treatment rates at >10,000/yr and further discounts at >50,000/yr.
– Design changes: adopt removable battery compartments and screws to lower treatment labor by 30–60%.
– Consolidation: centralize returns to reduce transport cost per kg and improve recycler acceptance.
– Longer-term contracts: multi-year agreements (3 years) often lower unit prices and provide stable forecasting.

Budget planning
– For a purchaser of 10,000 units/year, budget ≈ €5,000–€25,000/year for complete EOL coverage; for 100,000 units/year expect €30,000–€200,000/year depending on device design and battery type.

Competitive Landscape

Key players and service models in the EOL ecosystem relevant to talking book pens:

Producer Compliance Organizations (PROs) / Producer Responsibility Schemes
– Established national PROs manage collection, treatment and reporting channels and pool resources of multiple producers. They are dominant in the EU, UK, Japan and parts of North America.
– Pricing is typically weight- and category-based and negotiable for large volumes.

Third-party reverse logistics and recyclers
– Large international recycling firms (examples: Sims Lifecycle Services, Umicore for batteries/metals, local certified e-waste processors) offer integrated collection, sorting, battery handling and material recovery.
– Specialist small-volume refurbishers serve education market with battery replacement and firmware re-imaging.

Retailer take-back programs
– Large retailers (e.g., national retail chains) commonly accept small electronics and route to national PROs or contracted recyclers. For B2B buyers this can be integrated into supplier agreements.

Value-recovery marketplaces
– Secondary-market platforms and refurbishers that purchase returned units for refurbishment and resale in lower-tier markets.

Certifications and standards firms
– R2 and eStewards certify recycler practices. ISO 14001 and ISO 45001 indicate environmental and occupational safety systems.

Choosing partners
– For school and publisher buyers focused on circular use, prefer refurbishers with QA, child-safety recertification ability, and secure data handling.
– For large multi-country sellers, a PRO plus a certified recycler with regional presence and proven cross-border handling is preferred.

Market consolidation
– Expect increased consolidation of recyclers and PROs, and greater demand for end-to-end EPR solutions that include reverse logistics, data handling and reporting dashboards.

What Buyers Say

Common feedback from B2B buyers and procurement teams in this product category:

What buyers require
– Clear end-to-end proof of compliance with national WEEE and battery laws, including registration numbers and annual reports.
– Transparent per-unit costs with defined volume bands and published KPIs.
– Short SLAs for collection (48–72 hours for bulk B2B pickups) and rapid reporting for recycled weight and certificates.
– Secure data wiping assurances with third-party attestation.

Pain points reported
– Difficulty classifying toys vs consumer electronics across different member states — classification inconsistencies drive fee unpredictability.
– High per-unit cost for devices with sealed Li-ion batteries and glued housings.
– Low monetization for recovered plastics; buyers want guaranteed environmentally sound destinations for plastics rather than just shred-and-export outcomes.
– Risk of shipments being rejected at borders due to improper documentation for hazardous waste export.

Best-practice actions buyers cite
– Negotiate EPR fees as an explicit line item with suppliers; require WEEE and battery compliance as a contract condition.
– Build refurbishment pipelines for classroom returns — buyers recovering and reselling refurbished units to non-profit partners cite the highest lifecycle cost reduction.
– Insist on recycler certification and chain-of-custody documentation; audit at least once every 12 months.

Safety, Maintenance and Compliance

Safety hazards
– Lithium batteries: potential for thermal runaway, fire during transport, mechanical shredding and storage. Require removal before shredding unless recycler has battery-dedicated process.
– Button cells: ingestion risk for children and potential for severe injury if swallowed. Customers and collection points must be instructed to isolate used button cells.
– Data privacy: devices may contain child audio recordings — secure handling and wiping are mandatory.

Regulatory compliance — core rules to follow
– WEEE (EU and many national variants): producer registration, EPR payments, marking, reporting of placed-on-market and collected units.
– Battery directives: battery labeling, separate collection, and recycling targets; producer registration for batteries sold/placed on market.
– RoHS: ensure restricted substance limits are met; necessary for recycler acceptance in many jurisdictions.
– Transport: UN 38.3 for lithium batteries; ADR (road), IATA (air), and IMDG (sea) rules apply to cross-border movement of devices with batteries.
– Basel Convention: prior informed consent required for transboundary movement of hazardous waste for disposal or recycling outside OECD unless exemptions apply.

Operational safety best practices
– Separate batteries on collection: require that collection points remove removable batteries; for sealed batteries, coordinate with recycler for battery-safe transport.
– Fire prevention: store collected devices in a cool, dry area with limited stack height and segregated battery containment to reduce risk of thermal incident.
– Training: ensure collection staff and reverse logistics partners are trained in battery handling and emergency response.
– Records retention: maintain purchase, placement-on-market and WEEE collection/treatment records for at least 4–5 years to meet most national regulatory requirements and for audit purposes.

Maintenance and reusability
– Battery replacement programs: use certified replacement cells and test to 80% capacity threshold for safe reuse.
– Firmware updates and QA: refurbishing should include firmware validation to prevent invasive or unsafe code being reinstalled.
– Spare parts pool: maintain inventory of common components (speakers, batteries, housings) to extend device life and reduce scrap.

Frequently Asked Questions

What classification applies to talking book pens for WEEE purposes?
– Classification depends on primary function and national definitions. They often fall under “toys” or “consumer electronics” categories. Confirm with national WEEE authority or PRO; misclassification affects fees and reporting.

Do I need to register for WEEE if my buyer imports the units?
– Many jurisdictions require registration by the “producer”, which can be the brand owner, importer, or seller depending on local law. If you are placing the product on the market as an importer or brand, you likely have obligations.

How should I handle devices with sealed lithium batteries?
– Do not send sealed Li-ion devices to mechanical shredders without battery removal. Use recyclers with battery-dedicated processes or instruct collection points to return devices to a facility that can safely discharge and remove cells. Ensure transport complies with UN 38.3 and ADR/IATA packaging.

What is a reasonable refurbishment acceptance threshold for batteries?
– Commonly, refurbishers accept batteries at ≥80% of nominal capacity. Batteries below that threshold should be recycled or replaced with certified replacements.

Are there standard certifications I should require from recyclers?
– Require R2 or eStewards certification where possible, ISO 14001 and ISO 45001 as minimum. Also require evidence of legal downstream destinations and chain-of-custody documentation.

Can I export scrap plastics or EOL units to other countries?
– Export is regulated by the Basel Convention and national laws. Exporting to non-OECD countries for disposal or uncontrolled recycling is often illegal without prior informed consent. Use certified downstream partners and insist on transparent reporting.

How much will EPR fees add to my unit cost?
– Typical EPR fees range from €0.10–€1.50 per unit for small devices, but vary widely by country and classification. Battery collection and handling can add €0.20–€1.50 per unit for Li-ion devices.

What proof will regulators require?
– Proofs commonly requested: WEEE and battery registrations, annual reports of units placed on market and weight collected, certificates of treatment and material recovery, invoices for recycling services and chain-of-custody documentation.

How do I manage data privacy on returned devices?
– Implement an established secure-erase procedure (e.g., NIST SP 800-88) and obtain attestation from refurbisher/recycler. For sensitive deployments (schools with recordings), consider physically destroying storage or requiring physical removal and certified destruction.

Contact Toyvao

For assistance building an end-of-life program for Talking Book Pens—classification, PRO selection, take-back design, recycler sourcing, contract templates and pilot implementation—contact Toyvao procurement consulting. We provide:
– Product classification and regulatory mapping for EU, UK, US, Canada, Australia and selected APAC markets.
– Supplier and recycler vetting with document checks (WEEE numbers, PRO membership, R2/eStewards, ISO certifications).
– Reverse logistics design including packaging, ADR/IATA compliant transport and consolidation strategies.
– Cost modeling using your unit weight, battery type and forecast volumes to produce a 3-year EPR and logistics budget.
– Template contracts (collection/processing agreements, service-level agreements, audit clauses, indemnities).

To engage, provide:
– Product spec sheet (weight, battery chemistry & capacity, materials, photos).
– Annual forecast by country/region.
– Current sales/market channels and any existing WEEE or battery registrations.

Toyvao will prepare a tailored EOL action plan and negotiate pilot pricing with certified partners.
